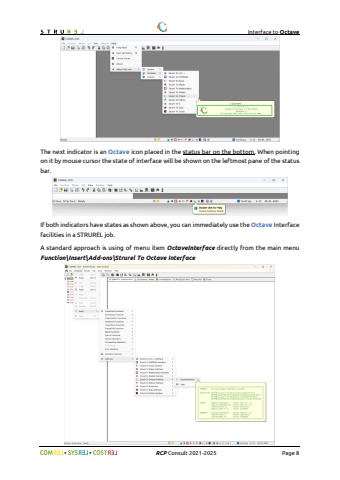

Interface to Octave%uf09f %uf09f RCP Consult 2021-2026 Page 88. How to use the Octave interface in a STRUREL jobDuring installation of a STRUREL program with a licensed Octave Interface thecorresponding Add-on (SAO) %u2013 StrurelToOctave.sao having a major export function OctaveInterface will be placed in the \\Add-ons\\ folder. If both programs were bound as described in the first 3 sections of this document, then in STRUREL several indicators provide information about interface. The first one is a menu item Strurel To Octave in main menu Help\\About Add-ons\\Interface. By selecting this item, an informative tooltip will be shown.The next indicator is an Octave icon placed in the status bar on the bottom. When pointingon it by mouse cursor the state of interface will be shown on the leftmost pane of the status bar.If both indicators have states as shown above, you can immediately use the Octave Interface facilities in a STRUREL job.A standard approach is using of menu item OctaveInterface directly from the main menu Function\\Insert\\Add-ons\\Strurel To Octave Interface
