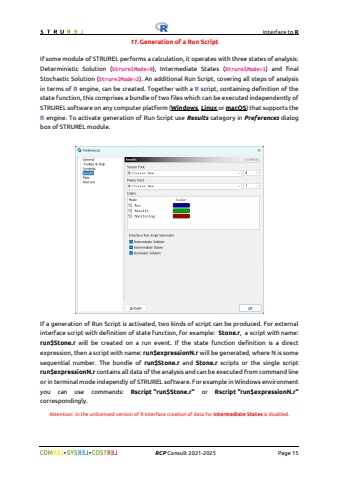

Page 15 - Demo

Interface to R%uf09f %uf09f RCP Consult 2021-2026 Page 1511. Generation of a Run ScriptIf some module of STRUREL performs a calculation, it operates with three states of analysis: Deterministic Solution (StrurelMode=0), Intermediate States (StrurelMode=1) and final Stochastic Solution (StrurelMode=2). An additional Run Script, covering all steps of analysis in terms of R engine, can be created. Together with a R script, containing definition of the state function, this comprises a bundle of two files which can be executed independently of STRUREL software on any computer platform (Windows, Linux or macOS) that supports the R engine. To activate generation of Run Script use Results category in Preferences dialog box of STRUREL module.If a generation of Run Script is activated, two kinds of script can be produced. For external interface script with definition of state function, for example: Stone.r, a script with name: run$Stone.r will be created on a run event. If the state function definition is a direct expression, then a script with name: run$expressionN.r will be generated, where N is some sequential number. The bundle of run$Stone.r and Stone.r scripts or the single script run$expressionN.r contains all data of the analysis and can be executed from command line or in terminal mode independly of STRUREL software. For example in Windows environment you can use commands: Rscript \Rscript \correspondingly.Attention: in the unlicensed version of R Interface creation of data for Intermediate States is disabled.
