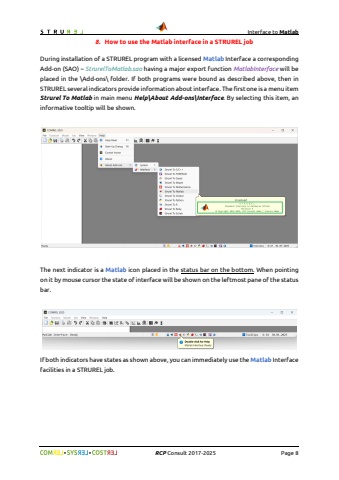

Interface to Matlab%uf09f %uf09f RCP Consult 2017-2026 Page 88. How to use the Matlab interface in a STRUREL jobDuring installation of a STRUREL program with a licensed Matlab Interface a corresponding Add-on (SAO) %u2013 StrurelToMatlab.sao having a major export function MatlabInterface will be placed in the \\Add-ons\\ folder. If both programs were bound as described above, then in STRUREL several indicators provide information about interface. The first one is a menu item Strurel To Matlab in main menu Help\\About Add-ons\\Interface. By selecting this item, an informative tooltip will be shown.The next indicator is a Matlab icon placed in the status bar on the bottom. When pointingon it by mouse cursor the state of interface will be shown on the leftmost pane of the status bar.If both indicators have states as shown above, you can immediately use the Matlab Interface facilities in a STRUREL job.
